Products Description

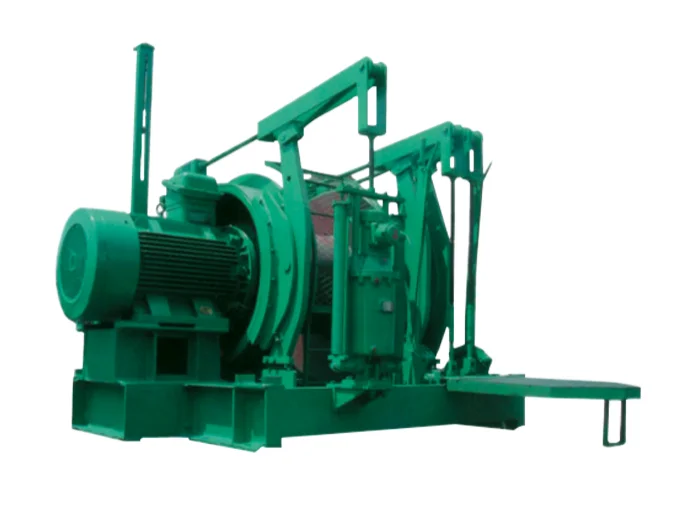

3T, 4T And Other Specifications Of Mining Winches, Mining Elevators Can Be Customized
Classification Of Mining Winches
According to power, it is divided into three types: electric, pneumatic, and hydraulic; There are two types of force transmission between the steel wire rope and the drum: winding type and friction wheel type; There are four types of winch according to their usage: dispatch winch, column winch, endless rope winch, and transportation winch.
3T, 4T And Other Specifications Of Mining Winches, Mining Elevators Can Be Customized
Dispatching Winch
The commonly used technical parameters for scheduling winches are the drum diameter of 225-600mm; The maximum static tension difference of steel wire rope is 9.8-39.2kN; The diameter of the steel wire rope is 12.5~21.5mm; Wire rope speed 0.73-1.31m/s; Drum capacity of 400~760m; The motor power is 11~55kW.
3T, 4T And Other Specifications Of Mining Winches, Mining Elevators Can Be Customized
Prop Drawing Winch
The commonly used technical parameters for the column return winch are the drum diameter of 276-510mm and the maximum static tension of the steel wire rope of 49-280kN; Wire rope diameter 15.5-30mm; Wire rope speed 0.102~0.367m/s; The rope capacity of the drum is 80-310m; The motor power is 7.5-45kW.

3T, 4T And Other Specifications Of Mining Winches, Mining Elevators Can Be Customized
Endless Rope Winch
The commonly used technical parameters for the endless rope winch are the drum diameter of 500~2100mm; The maximum static tension of the steel wire rope is 12-120kN; The diameter of the steel wire rope is 13-34mm; Wire rope speed: 1-1.2m/s; The motor power is 15-130kW.
3T, 4T And Other Specifications Of Mining Winches, Mining Elevators Can Be Customized
Transport Winch
The commonly used technical parameters for transportation winches are the maximum static tension of the steel rope of 20-40kN; Wire rope diameter 18.5-21.5mm; Wire rope speed 1.2-1.8m/s; Drum capacity of 650~950m; The motor power is 45-75kW.
Advantages
3T, 4T And Other Specifications Of Mining Winches, Mining Elevators Can Be Customized
In recent years, our products have been widely used in the fields of offshore platform cranes, oil workover drilling winches, logging rope winding equipment, wall wiping machine winches, helicopter motor winches, and so on. With its high reputation, high-quality products and service system, it has received widespread praise from domestic and foreign customers.

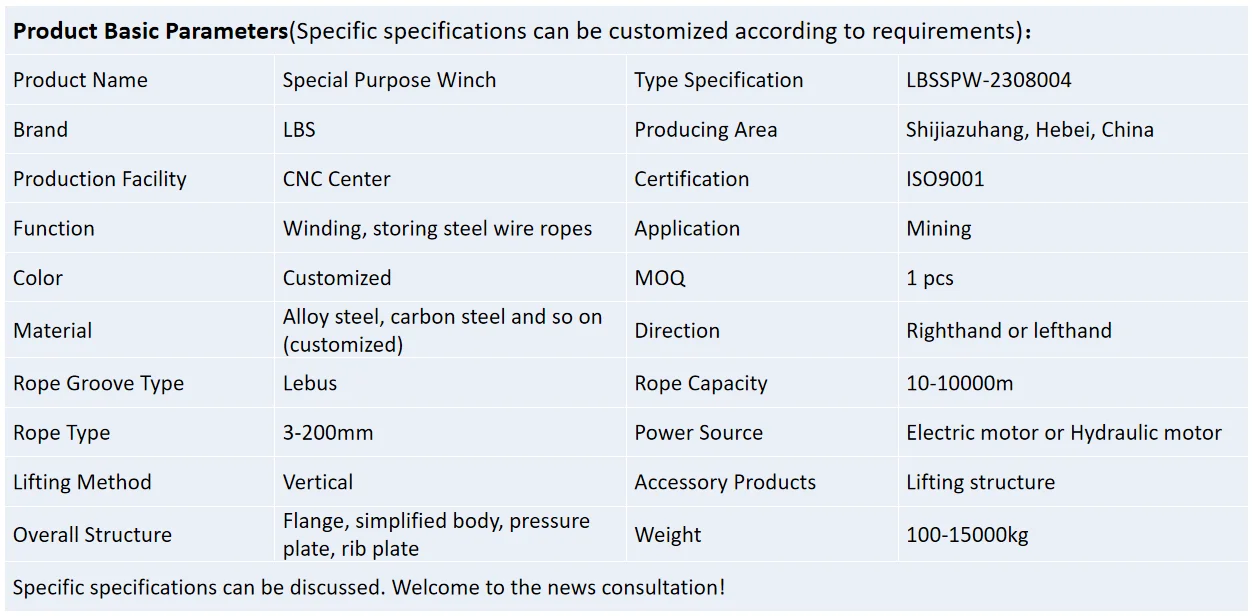

Technical Parameters
3T, 4T And Other Specifications Of Mining Winches, Mining Elevators Can Be Customized
Application
The LBS series Grooved Winch Drum is widely used in a variety of construction and engineering projects. These include water conservancy projects, forestry, mines, wharves, and more. It can be used effectively for material lifting or flat dragging. Additionally, it can be used as a auxiliary equipment for certain kinds of modern automated operations.
The LBS series Grooved Winch Drum is driven by a gear reducer, which provides an efficient and reliable means of powering material hoists. As such, it is suitable for many different applications, such as civil construction and the installation of projects from construction and mining companies, and even factories.
3T, 4T And Other Specifications Of Mining Winches, Mining Elevators Can Be Customized
Support and Services
3T, 4T And Other Specifications Of Mining Winches, Mining Elevators Can Be Customized
Products Technical Support and Service
We understand how important it is for our customers to have reliable technical support and service for their products. We are here to provide the best possible assistance when it comes to any questions or issues you may have. Our experienced team of experts is available to help you find the best solution for your needs. We offer a variety of technical support options, ranging from troubleshooting and installation to product advice and maintenance. Our technical support team is available 24 hours a day, 7 days a week to answer any questions you may have. In addition to our technical support services, we also provide a wide range of services to keep your products running efficiently and effectively. These services include regular maintenance, repair, and replacement. We can also provide assistance with customization and upgrades if necessary. We strive to provide the best possible technical support and service for our customers. We are committed to keeping your products running smoothly and efficiently. If you have any questions or issues, please do not hesitate to contact us. Our team of experts is here to help.
Processing Technic
3T, 4T And Other Specifications Of Mining Winches, Mining Elevators Can Be Customized
Successful Cases
