Quadruple Carbon Steel Lbs Grooved Winch Drum With Shaft

stars, based on 0reviews
$4550.00now$4500.00 piece
Quantity Price
1+ $4500.00
3+ $4275.00
100items available
Add inquiry cart Inquire Now

Product Description:

Slot winch is a lightweight small lifting device that uses a reel to wind a steel wire rope or chain to lift or pull heavy objects, also known as a crane. The groove type winch drum is one of the important components of the winch. There are three types of hoists: manual hoists, electric hoists, and hydraulic hoists. Electric hoist is the most commonly used crane, which can be used alone or as a component of lifting, road construction, and mining machinery. It is easy to operate, has a large amount of rope winding, and is easy to shift, which is highly favored by people.

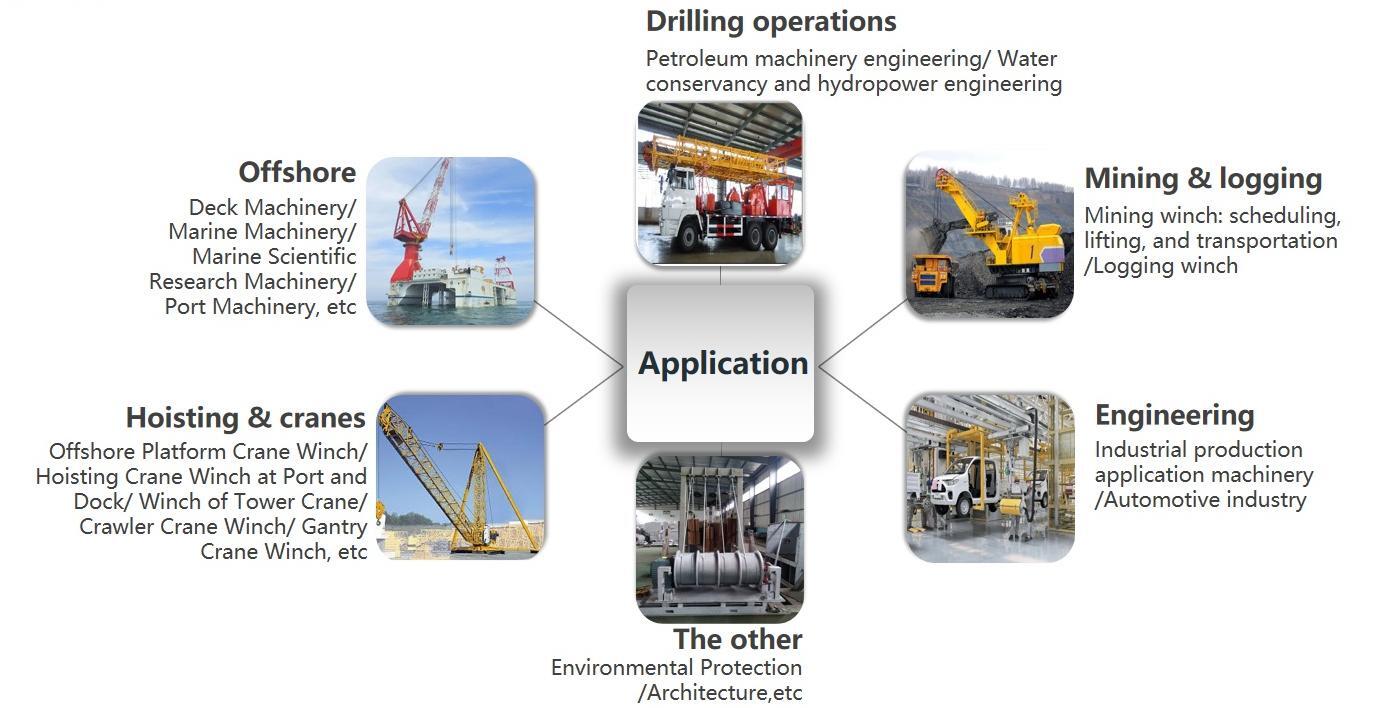

The hoist is mainly used for material lifting or leveling in construction, water conservancy, forestry, mining, docks and other projects. In addition, it can also serve as a lifting mechanism for special machinery and large equipment. Due to its wide range of uses, it has become an essential part of people's lives.

Quadruple Carbon Steel Lbs Grooved Winch Drum With Shaft


1.Product Name: Grooved Winch Drum

2.Key Words: Grooved Winch Drum, Quadruple Drum, Multiple Lifting Drum

3.Material: Carbon Steel

4.Rope Capacity: 1-20 Tons

5.Groove Number: 100

6.Groove Depth: 10-200 mm

Quadruple Carbon Steel Lbs Grooved Winch Drum With Shaft

Technical Parameters:

Product AttributeDescription

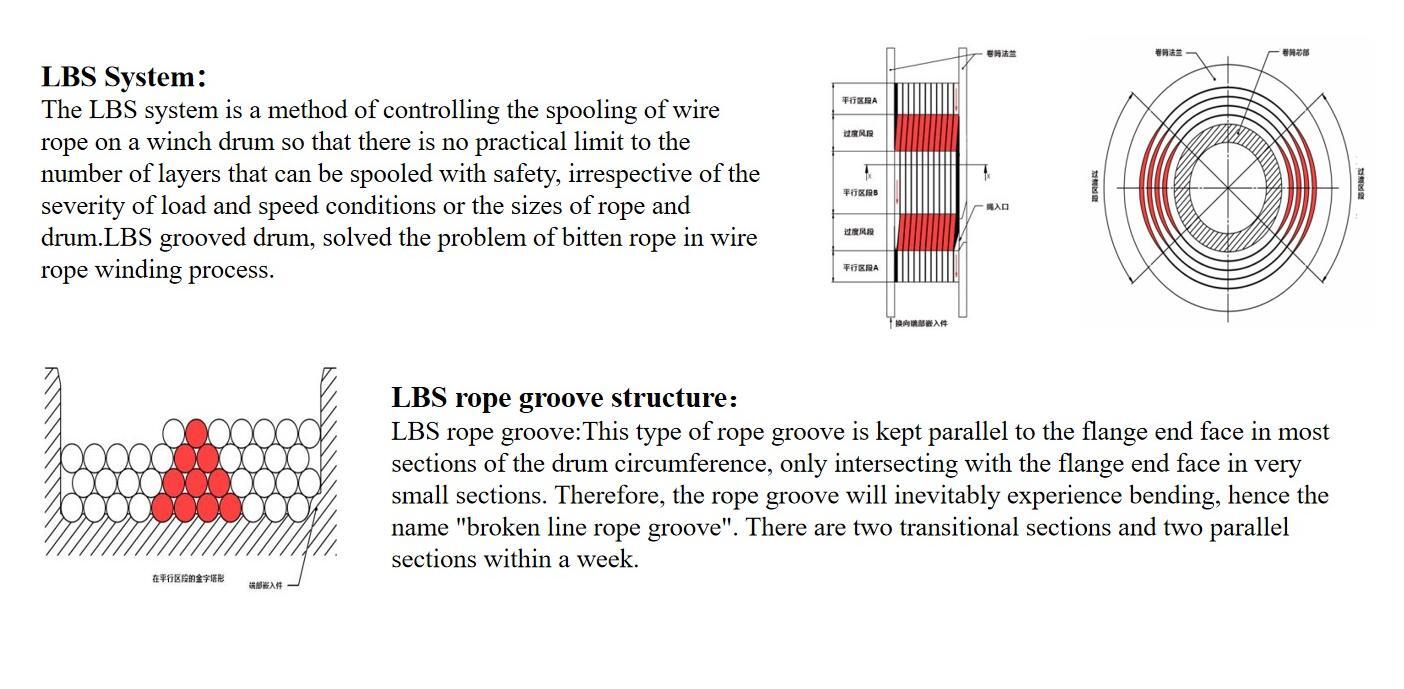

Key WordsLebus Gearmatic Winch, Lebus Grooved Geometry Drum, Grooved Winch Drum
MaterialCarbon Steel
Groove Number40-100
Drum LengthCustomizated
Groove Pitch50-1000 mm
Rope TypeSteel Wire Rope, Synthetic Rope
ApplicationLifting Or Flat Dragging Of Materials In Construction, Water Conservancy Projects, Forestry, Mines, Docks, Etc.
FeaturesWinds Smoothly Without Biting The Rope
Groove Depth5-100 mm
Rope Length50-1000 M


The LBS series Grooved Winch Drum is widely used in a variety of construction and engineering projects. These include water conservancy projects, forestry, mines, wharves, and more. It can be used effectively for material lifting or flat dragging. Additionally, it can be used as a auxiliary equipment for certain kinds of modern automated operations.

The LBS series Grooved Winch Drum is driven by a gear reducer, which provides an efficient and reliable means of powering material hoists. As such, it is suitable for many different applications, such as civil construction and the installation of projects from construction and mining companies, and even factories.

Quadruple Carbon Steel Lbs Grooved Winch Drum With Shaft

Support and Services:

Grooved Winch Drum Technical Support and Service

a. Our company specializes in the design and production of various types of electric and hydraulic anchor winches, mooring winches, variable amplitude cranes and ship frames, winches, engineering winches, cable winches, and traction winches (the main drum adopts slot type drum)

b. Warranty period of one year

c. Engineers can provide overseas services

d. Fast and responsible after-sales service

e. Highly competitive prices

Quadruple Carbon Steel Lbs Grooved Winch Drum With Shaft

Packing and Shipping:

Grooved Winch Drum Packaging and Shipping

The drum of the slot winch is packaged and transported using various methods. The most common method is to use custom wooden boxes designed to protect the drum from damage during transportation. In the box, the drum is wrapped in bubble wrap or other protective materials and secured with straps or other fastening systems. Then mark the shipping address on the box and attach appropriate documents.

The drum of the slot winch is usually transported by sea in sturdy wooden boxes. If needed, the drum can also be transported by air or express delivery services. In some cases, special arrangements may be required due to the size or weight of the drum.

When transporting the grooved winch drum, it is important to ensure that the box is properly labeled and the contents are adequately protected. The shipping address should also be clearly marked on the box, and appropriate documents should be attached to the goods.


Quadruple Carbon Steel Lbs Grooved Winch Drum With Shaft
